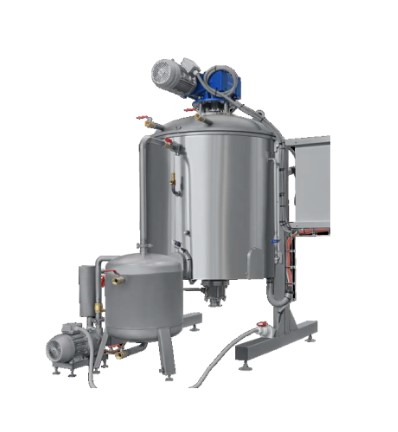

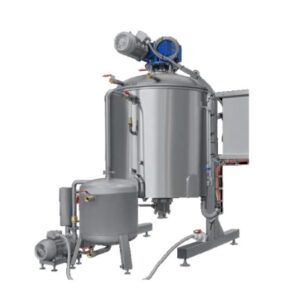

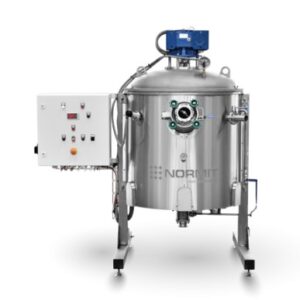

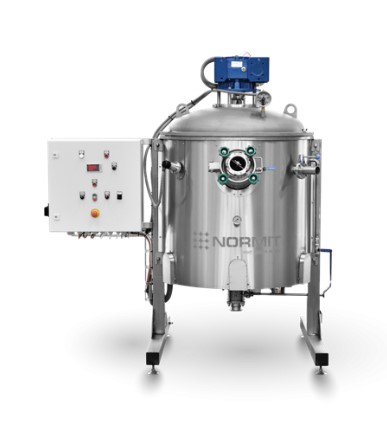

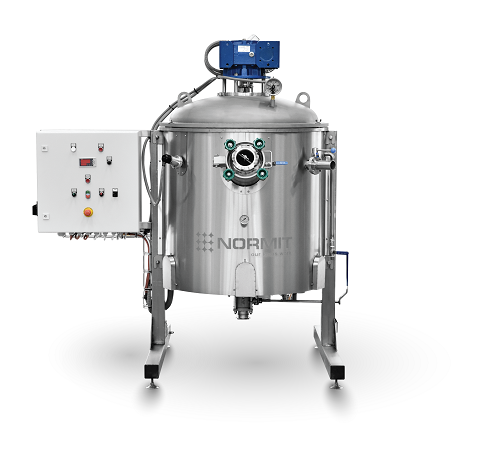

Vacuum evaporator – concentrator SweetStuff

‹Return to Previous Page
Description

Description

Examples of use

  •  Jams
  •  Sauces
  •  Different types of confectionery mixtures
  •  Oriental sweets
  •  other

Design

The main difference between the vacuum evaporator-concentrator and other types of vacuum boilers is the integrated dual forced vapor condensation system and the built-in condenser.

Mixing device – a reinforced mixer of a special shape developed especially for mixing highly viscous products that tend to stick. The stirrer is equipped with teflon scrapers and is double-sided – it mixes the product in the cooking / concentration process and helps to unload the finished viscous product when reversible rotation is switched on.

A built-in screw extruder is designed to unload the viscous finished product.

The vacuum generation system is included.

Vacuum evaporator – concentrator is produced with electric or steam heating.

Benefits

Highest evaporation efficiency. Product concentration / cooking takes minimal time.

Compact – all components required for cooking / concentration processes are compactly positioned. The device takes up minimal space.

Wide working temperature range – the evaporation process starts at 40 ° С, evaporation is possible up to 115 ° С with the need for caramelization of the product.

Possibility to work with viscous product, its uniform mixing, heat treatment, simple unloading.
